The Drawmer 1979 is a modern take on the classic channel strip, combining pristine clarity, tone shaping, and vintage compression in a single 1U unit.
It delivers the transparency of an ultra-clean pre-amplifier, the natural control of Lift, the precision of a three-band parametric equaliser, and the warmth of a soft-knee FET compressor - all designed to bring true analogue musicality to your recordings.
With switchable EQ and compressor order in the signal path, plus independent bypass for each section, the 1979 offers complete flexibility for shaping tone and dynamics.

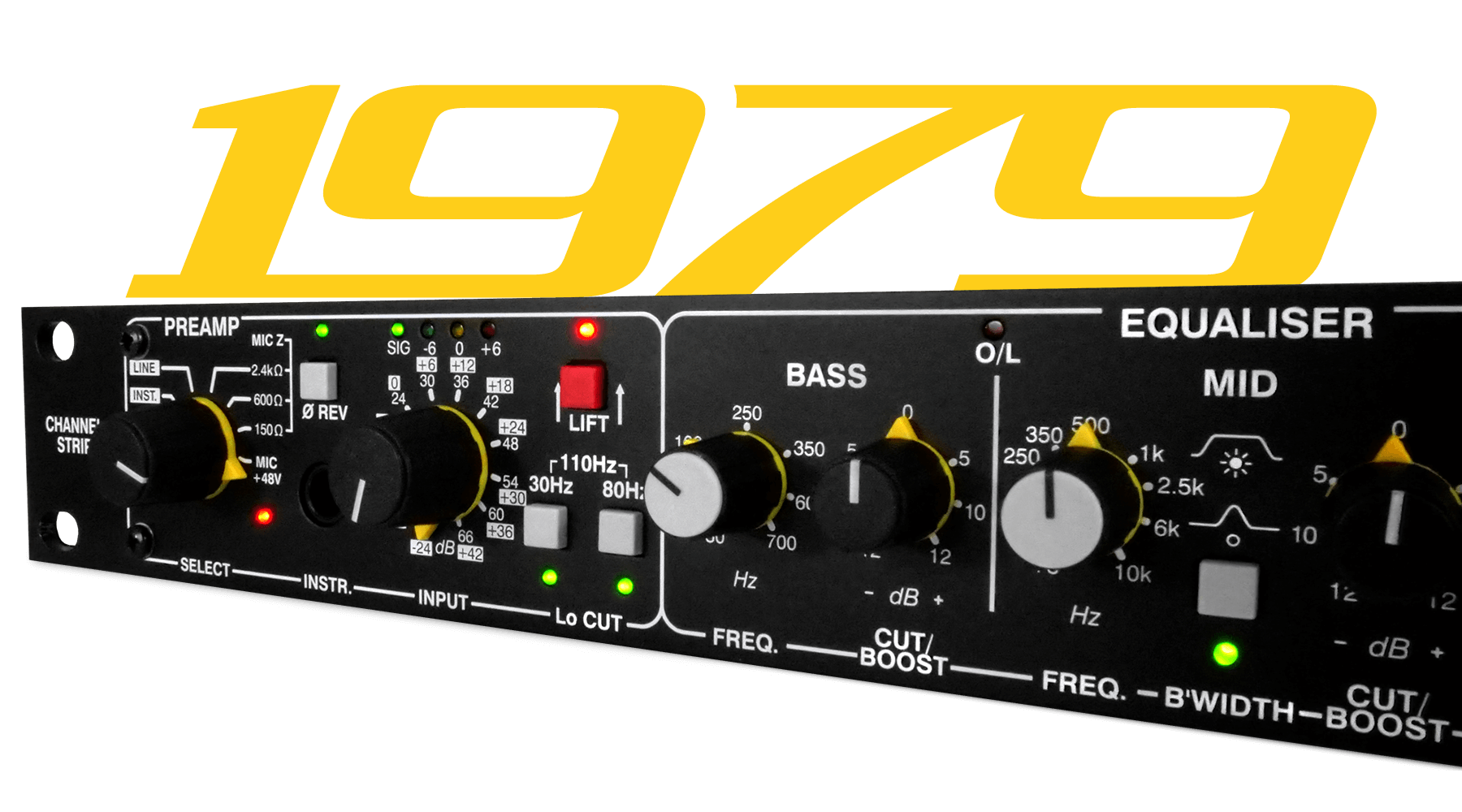

The 1979's pre-amplifier offers mic, line, and instrument DI inputs with up to 66dB of stepped gain, allowing you to capture ultra-clean, transparent recordings, enhance dull sources, or refine your instrument tone.
Switched impedance matching helps every microphone perform at its best - from high-end condensers to ribbons and older dynamics - revealing each mic's perfect sweet spot.
Lift - first introduced on the 1972 - is a dynamic gain module that boosts quieter signals below 0dB while leaving louder passages untouched, naturally reducing dynamic range without compression artefacts. It adjusts gain in real time for a smooth, musical response - a genuine 'set and forget' solution.
Ideal for vocals, finger-picked guitars, piano, or ambient recordings, Lift enhances subtle detail and balance without introducing noise or distortion.

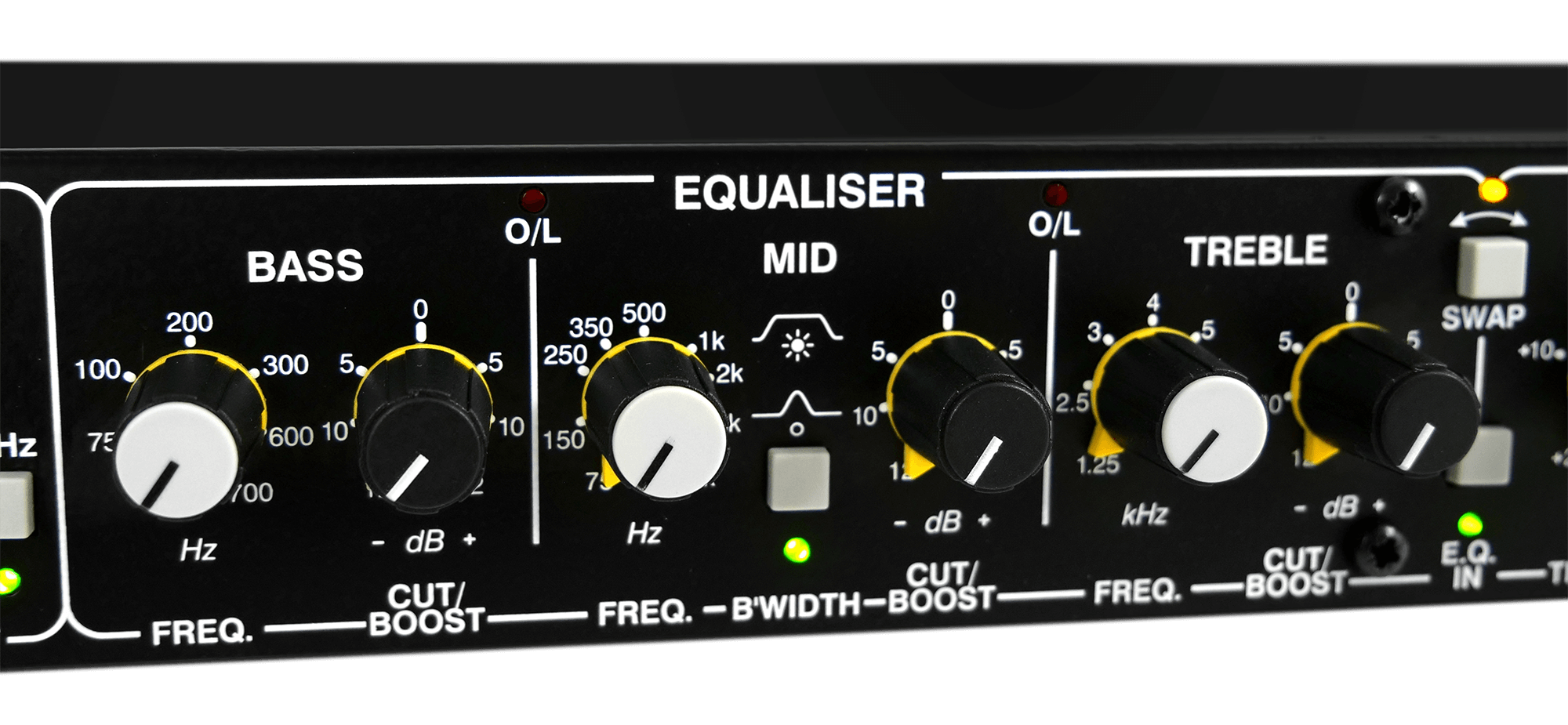

The 1979 features a fully variable three-band parametric equaliser with ±12dB of cut or boost and a switchable bandwidth control on the mid band.
Smooth, musical, and highly controllable, it excels at gentle tonal shaping as well as more surgical work to tame problem frequencies in a mix.

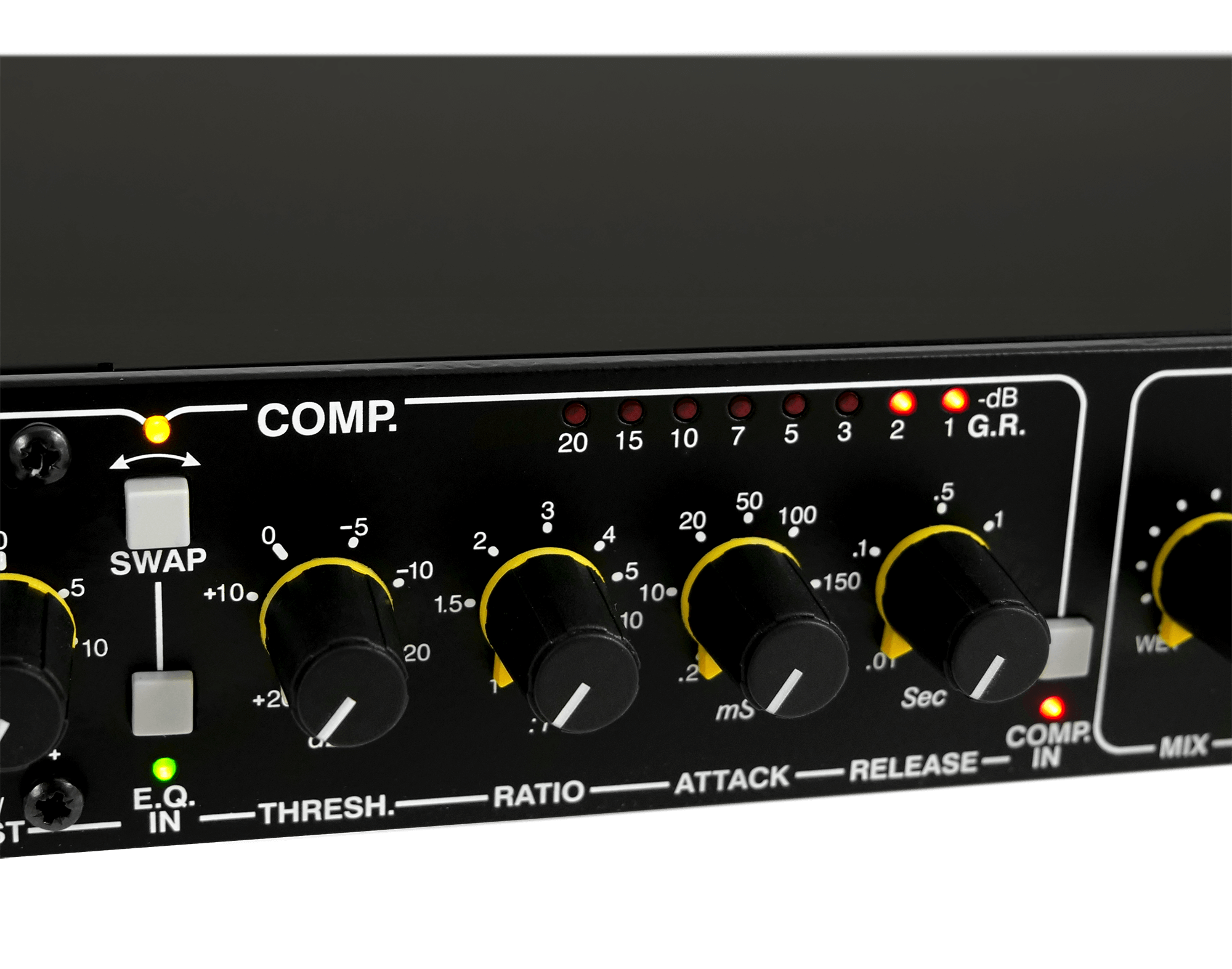

The soft-knee FET compressor delivers the smooth, musical control for which Drawmer is renowned. It offers everything from transparent vocal levelling and mix glue to more assertive drum or instrument compression.

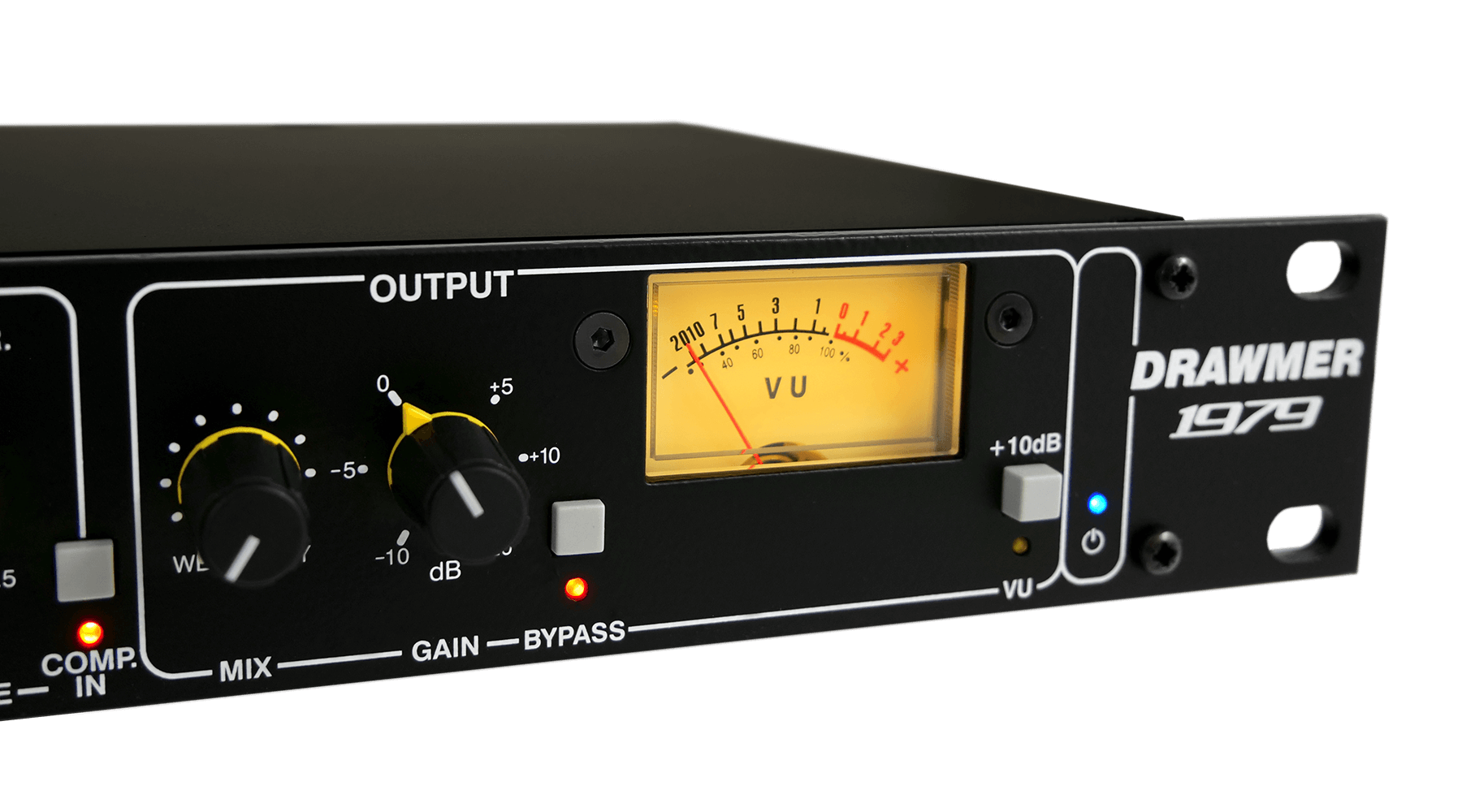

The output section includes a wet/dry mix for parallel processing, allowing you to fine-tune how much EQ and compression you blend into the signal. Output gain provides make-up level or lets you match interface inputs with precision.
A large backlit VU meter ensures accurate level monitoring, while a bypass switch disables both EQ and compression for an ultra-clean, direct pre-amplifier output.
| Description | Value | |
|---|---|---|
| INPUT | Input Impedance | 20k Ohms or greater |
| Maximum Input Level | +25dBu | |
| OUTPUT | Output Impedance | <100 Ohms |
| Maximum Output Level into 10k Ohms Load | +22dBu | |
| FREQUENCY RESPONSE | 20Hz to 20kHz +/-0.2dB | |
| NOISE AT UNITY GAIN | 20Hz - 20kHz | >91dB |
| % DISTORTION (THD & NOISE) | @ 1kHz 0dB | 0.003% |
| MIC EIN | Aweighted | -130dB |
| Description | Value | |
|---|---|---|
| POWER REQUIREMENTS | 230Volt or 115V at 50-60hZ | 15VA |
| FUSE RATING | @ 230Volt | T160mA |
| @ 115Volt | T315mA | |
| Conforming to IEC 127-2 | ||
| FUSE TYPE | 20mm x 5mm, Class 3 Timed-Blo, 250Volt working | |
| CASE | Depth | 200mm |
| Width | 482mm | |
| Height | 44mm | |
| Weight | 2.6kg |
